Genuine licensed
80mm

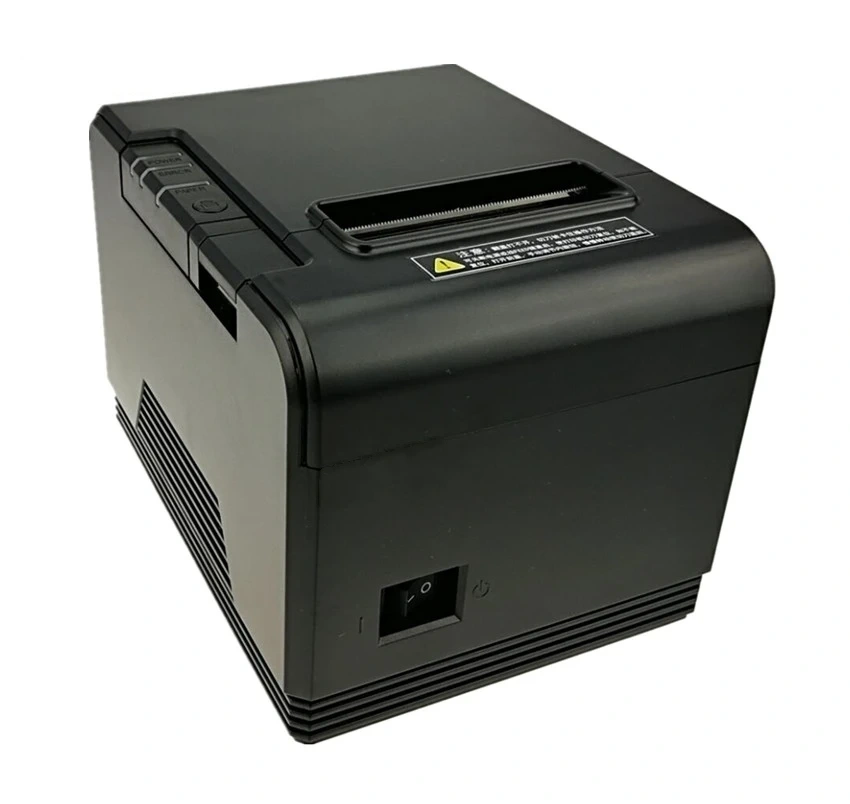

"High-quality thermal printer:
the core thermal receipt printer, is a high-end appearance, new varieties of high cost, there are beautiful shape, but also has excellent quality.To meet your various printing needs, provide strong support.
Functional characteristics
--Support for a variety of international languages and scripts
-- Support print job tips and error alarm function
-- driving high-speed download and print mode, supports Linux system drive
--Support black mark detection function
--Increase avoid "missing orders" function
--Supports Ethernet and
Serial
port monitoring function
--download store and print Logo trademark
--Support 256K Bytes NV Logo download store and print Logo trademark
Technical parameters:
Print
Printing method Direct thermal line
Print width 72mm paper width
Point density 576 dots / line, or 512 dots / line
Printing speed 200 mm / se
Paper 79.5 ± 0.5 mm × φ83 mm
Line spacing 3.75 mm (available command to adjust line spacing)
Number of columns
80mm paper: 80mm Paper: Font A - 42 columns or 48 / Font B - 56 columns or 64 / Jane, Traditional --21 column or 24
Character size
ANK character, Font A: 1.5 × 3.0mm (12 × 24 points)
Font B: 1.1 × 2.1mm (9 × 17 dots)
Simplified / Traditional: 3.0 × 3.0mm (24 × 24 points)
Barcode characters
Extended character table PC347 (Standard Europe), Katakana,
PC850 (Multilingual), PC860 (Portuguese),
PC863 (Canadian-French), PC865 (Nordic),
West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic # 2), PC852 (Latin2), PC858, IranII, Latvian, Arabic, PT151 (1251)
Barcode Type UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) /
CODE39 / ITF / CODABAR / CODE93 / CODE128
Cutter
Full or semi-automatic cutter cut optional
Buffer
Input buffer 64k bytes
NV Flash 256k bytes
Power supply
Power Adapter Input: AC 110V / 220V, 50 ~ 60Hz
Power Output: DC 24V / 2.5A
Cash Drawer Output DC 24V / 1A
Physical Characteristics
Weight 1.3 kg
Dimensions 183 × 143.5 × 135 mm (L × W × H)
Environmental Requirements
Working temperature: 0 ~ 45 , Humidity: 10 ~ 80%
Storage temperature: -10 ~ 60 , Humidity: 10 ~ 90% (non-condensing)
Lifetime
Cutter life one million times
100 km printhead life

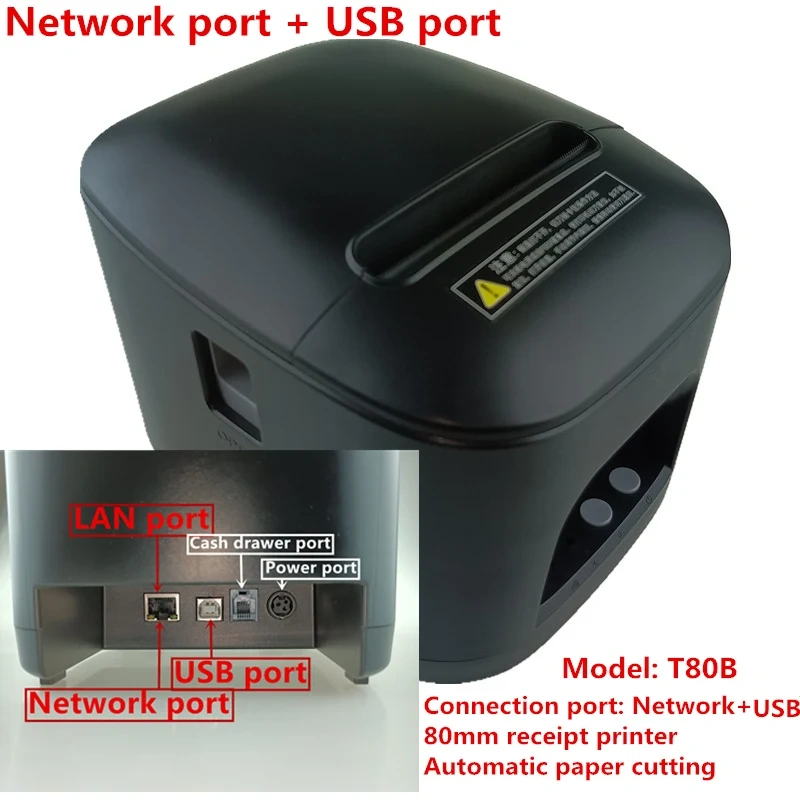

Interface Type:
USB, Ethernet port,
Serial
,
parallel
driver system:
win 7/ Win 8
/
Win XP/
Win 9X/ Win ME/ Win 2000/ Win 2003/Win Vista/Linux/
Win 8.1/
Win 10
1. The printer 2. Power adapter 3. USB cable 4. Plug 5. Install the driver CD and instructions 6. Print paper
Product range:
Support automatic paper cutting function
Support LOGO trademark print
Support bar code print
Supports QR code print
Support more than 100 languages worldwide text print
Shipment:
--Please leave the full recipient name.
-- Please leave completed and correct address, so as to make sure the parcel will be sent to the buyer without any delay.
-- If the buyer need the fast delivery, DHL, FEDEX,UPS,TNT,EMS are all available. The buyer can select the different shipping ways considering of the different shipping fees and delivery time when place the order.
After-sales service:
--If you don't receive the parcel,please check your order number and then contact us.
--Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and services.If you have any problems with our items or services, please feel free to contact us first before. We will do our best to solve any problems and provide you with the best customer services.
Thank you!
